U-Control
|
|
A
sophisticated, yet simple to use, battery-operated unit, U-Control enables
patients to self-train with prescribed exercises, at home, to re-educate
pelvic muscles for better urinary or fecal control.
Two LEDs cue patients to tense or relax either for 5 or 10 seconds.
Patients view their progress on an ascending or descending bargraph scale
or 15 LEDs and listen for rising or falling variations in a continuous
tone.
U-Control has an adjustable threshold setting to enable health
professionals and patients to revise and report on their training programs
as they progress.

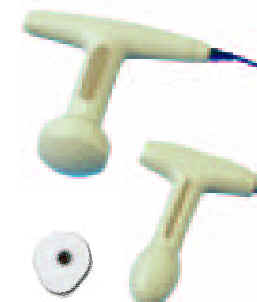

Patients use a comfortable, reusable vaginal or rectal sensor in
combination with simple biofeedback exercises to improve bladder and bowel
function by:
- holding
a steady LED readout or tone.
- intensifying
muscle contractions above the threshold level
- repeating
a preset number of exercises
- striving
for specific LED readings or tones
$349.00
|
U-control Specifications |
|
Input Impedance |
1,000,000 MegOhms |
|
Accuracy |
5% and 0.3μV |
|
Sensitivity |
<0.1 microvolts RMS |
|
Bandwidth(frequency) |
90-300 Hz. |
|
CMRR at 60 Hz |
>180 dB |
|
CMRR > 90-300 Hz |
>140 dB |
|
Range |
0.2 - 37.5 microvolts (X1); |
|
0.6 - 112.5 microvolts (X3). |
|
Bargraph scaling |
The highest yellow LED is 2.5 times the threshold
setting; the lowest green LED is 0.2 times the threshold setting; other
LEDs are proportional to these extremes. |
|
Current consumption |
Approx. 15 - 30 milliamps |
|
Outputs |
Earphone (8-32 ohms), 2.5 mm mono jack |
|
Battery |
9 Volt Alkaline, or NiCad rechargeable type MN1604.
|
|
|
