AT42 Portable Single-Channel Temp

AT42 Portable Single-Channel TempThe AT42 TEMP is an easy-to-use, portable, single-channel temperature training instrument. Its BUILT-IN MICROPROCESSOR collects and analyzes session data, and presents temperature information in ways that are easier than ever to understand.

AT42 TEMP Features

  • Calculation and display of summary statistics (session mean, max., min., and SD).
  • Temperature display in F or C.
  • Temperature feedback resolution of 0.1 or 0.01 (user selectable).

Easy-to-Use

All AT42 TEMP features are AT YOUR FINGERTIPS. A press of the desired button will change control settings, record or display session data, or select a feedback option.

Exclusive TPI

The AT42 TEMP is the only portable temperature feedback instrument with time period integration (TPI). The TPI feature allows a selectable rate of temperature feedback to the patient. It can provide the absolute temperature in real-time -- or the mean temperature every 1.0, 2.0, 4.0, 10.0 or 60.0 seconds.

TPI values, along with the session mean from the AT42 TEMP's Statistics feature, can be used to DEMONSTRATE IMPROVEMENT both within each session and from session to session.

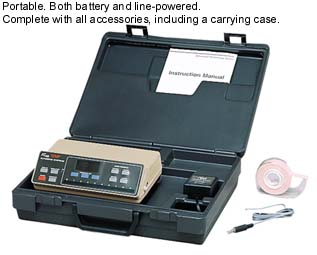

AT42 with accessories and carrying caseSuperior Feedback

Audio: The AT42 TEMP's audio synthesizer, creates new opportunities for "user-oriented" audio feedback. It provides conventional audio feedback as well as new types of feedback which distinctly indicate the RATE AND DIRECTION of temperature change. Audio feedback selections include:

1. Melodic piano tone,
2. Percussive piano tone
3. Ten tone, and
4. Bi-tone.

Visual: The AT42 TEMP features two visual feedback selections:

1. an LED numerical display that reads out absolute temperature in F or C, and
2. a 10-segment LED lightbar.

Simply Better

The AT42 TEMP is the intelligent choice in temperature biofeedback. It combines USEFUL FEATURES, unavailable on any other instrument, with an affordable price.

AT42 SINGLE CHANNEL TEMP SPECIFICATIONS:

The AT42 TEMP is designed to meet/exceed the electrical and safety standards specified by UL 2601, IEC 601 and CSA 871. The default parameters are bolded.

Visual Feedback

Display Options Numerical LED + Lightbar, Lightbar only, Numerical LED only, A/B Ratio
Numerical LED Displays Three red digits, 0.5" high
Numerical LED Range 32 - 113 F, 0 - 45 C
TPI (Time Period Integration) Settings 0.5, 1.0, 2.0, 4.0, 6.0, 10.0, 60.0 seconds
Lightbar 10 red segments
Lightbar Scale Factor 0.1, 0.01 F or C

Audio Feedback

Tones Melodic piano, Percussive piano, tone, Ten tone, and Bi-tone
Volume Levels 0 to 7, 4 is the default
Audio Provided Continuously, Above or Below Threshold

Statistics

Statistics Acquired Min., Max., Mean, SD
Sampling Capacity 525,000 data points per session

Electrical

Resolution 0.01 F, 0.01 C
Accuracy 0.3 F
Sampling Rate 8 Hz (every 0.125 seconds)
Leakage Current In compliance with UL 2601 specifications
Audio Output 3.5 mm stereo earphone jack, (mono output)
Analog Output Linear 0-3 volt DC signal, compatible with most computer interfaces
Line Power Input 120 volt, 60 HZ, 220 volt, 50/60 Hz
Battery Rating 10 to 12 hours continuous use
Battery Recharge 16 hours maximum with built-in overcharge protection
Dimensions & Weight 2.5"H x 7.7"W x 5.3"D; 1 pound 5 ounces

STANDARD ACCESSORIES (Included)

Qty.

Item

(1)

UL listed isolation adapter

(4)

Installed Ni-Cad rechargeable batteries

(1)

6-foot TEMP sensor cable

(1)

Roll thermistor tape

(1)

Carrying case

(1)

Owners manual

Warranty: 1 year parts and labor on instrument; 90 days on accessories, 3 year extended warranty available.
Indications: TEMP feedback is indicated where general relaxation training is desired.
Contraindications: There are no known contraindications with the AT42 TEMP for the purpose of general relaxation training.
NOTE: No warranty or claim is made regarding the efficacy of products in clinical use, but only with regard to electronic specifications,
which specifications are subject to change without notice. Prices and specifications subject to change without notice.


$829 (if you are in a country requiring  220 volt add $20.)

shipping in the US  $25. Outside the US, contact us with your full address information so we can give you an exact shipping price.
