(T4000P) Permalink    Equipment:

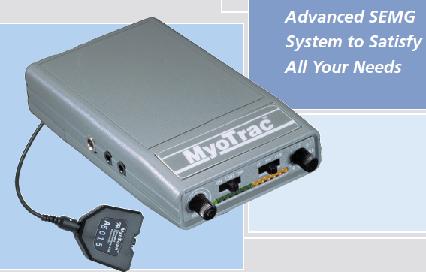

Myotrac 60Hz

View Pricing

View Ratings | Rate It

MyoTrac™ packs extreme sensitivity into a light, compact unit that works for you and your patient in the clinic or home. It is ideal for clinical assessment as well as for self-training. MyoTrac™ allows total freedom of movement for ambulatory exercises and provides a bright light bar and proportional tone biofeedback. The unit is accurate and reliable. MyoTrac™ offers three sensitivity ranges for muscle strengthening, rehabilitation or relaxation therapy, and provides stable readings in less than a second.
  • Home Trainer
  • 1 channel SEMG
Features:
  • The highly-sensitive MyoScan active sensor needs no skin preparation
  • Two modes of biofeedback - LED and 5 way tone - provide flexibility
  • 5 way tone feedback includes proportional, above and below threshold and 4-second delayed alarm
  • 13-segment LED bargraph offers expanded range for precise visual feedback
  • Wide and narrow bandpass filters provide precise monitoring of normal and fatiguing muscles and eliminate heart-beat artifact
  • 0 to 2 Volts DC output allows to connect to third party equipment and permits computerized monitoring
  • Low current consumption provides long battery life
Specs
MyoTrac SA4000P/SA4001P Hardware Specifications
Size (approx.) 61mm x 112mm x 25mm (2.4” x 4.4” x 1”)
Weight (approx.) 73g (2.5oz)
Input Impedance 1,000,000MΩ in parallel with 10pF
Signal Input Range x1 0 – 20μV
Signal Input Range x10 0 – 200μV
Signal Input Range x100 0 – 2000μV
CMRR 20 – 500 Hz (approx.) 130dB
CMRR @ 60 Hz (approx.) 180dB
Channel Bandwidth (Wide) 20Hz 5Hz – 500Hz 50Hz
Channel Bandwidth (Narrow) 100Hz 10Hz – 200Hz 20Hz
Signal Output Range 0V – 2V
Supply Voltage 7.4V – 9.6V
Current Consumption 10mA – 3mA /+5mA
Battery Life (Alkaline) 40 Hours minimum
Low Battery Warning 7.4V
Accuracy 5% and 0.3mV
